roomba_rest980

Drop-in native integration/replacement for jerrywillans/ha-rest980-roomba.

Still work in progress, but the vacuum entity has been fully ported over.

Roadmap

• Feature parity (minus actions) with vacuum entity
• Cloud API connection
  • Cloud MQTT connection
• Actions
• Dynamically grab rooms and add them to the UI
  • Grab room data (optional, cloud only)
  • Create map image

Why?

I found that working with jeremywillans' implementation was nice and almost effortless, but I'd prefer to not have a YAML configuration and work with it by a more native integration that adds entities and isn't bound to making a lot of helpers per room.

Setup

Prerequisites / Recommendations

• HACS
• rest980
  • If you don't have it yet, don't worry; this guide will show you how to add it.
• Rooms mapped/setup in iRobot app
  • Note that everytime you remap and a room changes, it's ID may change (local users)!
• Knowledge of your Roomba and rest980 servers' IPs

I recommend that you use the lovelace-roomba-vacuum-card until I remake it for this integration.

Step 1: Setting up rest980: Grab Robot Credentials

If you already have it setup, and you know its url (like http://localhost:3000), you may skip this step.
First, you must gather your robot's on-device password and BLID (identifier).

NOTE: You cannot have the iRobot app running on your phone, or anything else connected to it during this step!

For Docker users

Execute this command: ```sh docker run -it node sh -c "npm install -g dorita980 && get-roomba-password " ``` and follow the on-screen instructions.

HA Addon by jeremywillans

Add https://github.com/jeremywillans/hass-addons to the Addons tab. Locate and install the roombapw addon, following the included instructions.

Other HA installation method

If you dont have direct access to Docker, you can clone and install the dorita980 package locally.
See dorita980's instructions on how to get the credentials.

Setting up rest980: Bringing The Server Up

Now that you have your robot's IP, BLID, and password, we need to actually start rest980.

For Docker users (docker-compose)

Download the docker-compose.yaml file, and bring the service up.

To bring the service up (just rest980) and leave it in the background, run

docker-compose up -d rest980

You may also add the service to an existing configuration. You do not need to add file binds/mounts, as there are not any.

HA Addon by jeremywillans

If you haven't, add https://github.com/jeremywillans/hass-addons to the Addons tab. Locate and install the rest980 addon, then update and save the configuration options with the credentials you got from the previous step.

NOTE: Rest980 Firmware option 2 implies v2+ (inclusive of 3.x)

Other HA installation method

Clone and start the rest980 server by koalazak, and note your computer's IP and port.

Step 2: Setting up the Integration

rest980 will gather all the data about our robot, but the integration will format it perfectly, creating entities and a vacuum device.

For HACS users

Add this custom repository, https://github.com/ia74/roomba_rest980 to HACS as an Integration. Search for the addon ("iRobot Roomba (rest980)") and install it!

Manual installation

Clone this repository, https://github.com/ia74/roomba_rest980 , and add the custom component folder (`roomba_rest980`) to your Home Assistant's `config/custom_components` folder.

When you install the integration and restart Home Assistant, you will notice it picking up your Roomba.

This is not due to your rest980 API server being discovered, rather the integration finding your Roomba on the local network.

If you do not see this, that is okay; it only means HA was able to fully detect a roomba through it's network identifiers.

Step 3: Adding your Roomba!

If you see the autodiscovered integration, press "Add"!

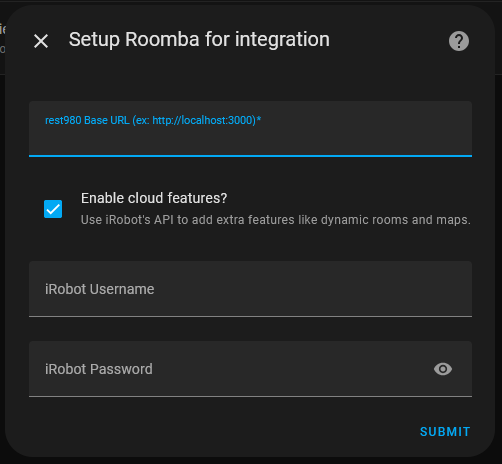

You'll be presented with this popup.

Input your rest980 server's url like so:

http://localhost:3000

and don't leave any trailing /s.

You may also input your iRobot credentials now, if you want to use cloud features that are coming soon. You must check "Enable cloud features?" for the cloud API to be used.

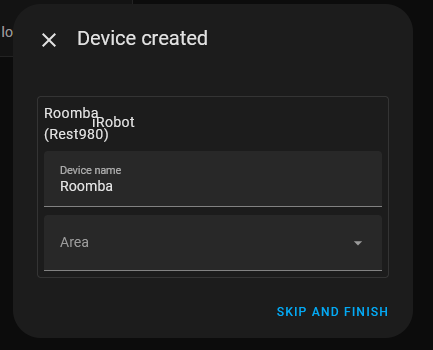

If you did it right, you'll see a success screen that has also gotten your given name for the Roomba!

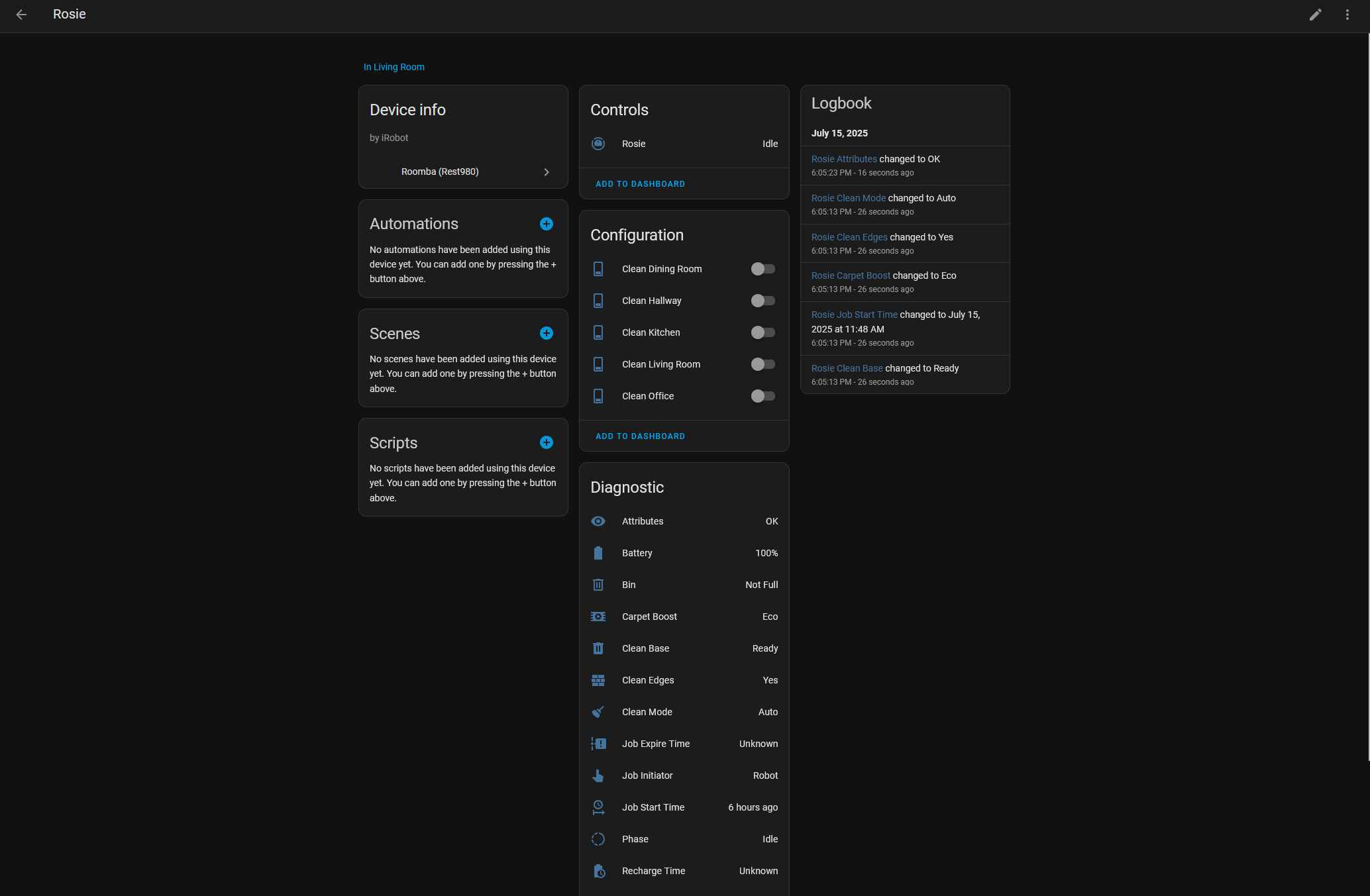

If all has gone right, checking the device will show something like this:

Step 4: Rooms! (Cloud)

As of current, this text is a placeholder for when this feature actually gets added. Still work in progress, but when this banner is removed, the below will be true.

Your rooms will be auto-imported, alongside a clean map view, much like the one from the app.
This allows you to selectively clean rooms, and control it by automation (tutorial later).
Rooms you select will be cleaned in the order you select. Two-pass functionailty coming soon as well.

Step 4: Rooms! (rest980 ONLY)

TO BE CONTINUED... Rooms are not given to us easily when we're fully local, but a fix is in progress for that.

Important Note

From this part on, the guide will not diverge unless required and will assume you are using Cloud features, but most of it should be generically implemented.

Step 5: Robot Maintenance / Done!

Unfortunately, this is not implemented yet, alongside any other action.

This integration will eventually support the maintenance function of the Roomba, but still is not implemented

Cleaning a room using the Roomba from HA

Unfortunately, this is not implemented yet, alongside any other action.

In any configuration you'd like, you may lay the switches on the dashboard and switch them in the order you want them cleaned. After that, press Start on the native Vacuum!

Note:

Unfortunately, this is about where my current progress ends. We gather all the possible data and display it. I will be working on this integration however and eventually these features will be fully supported.

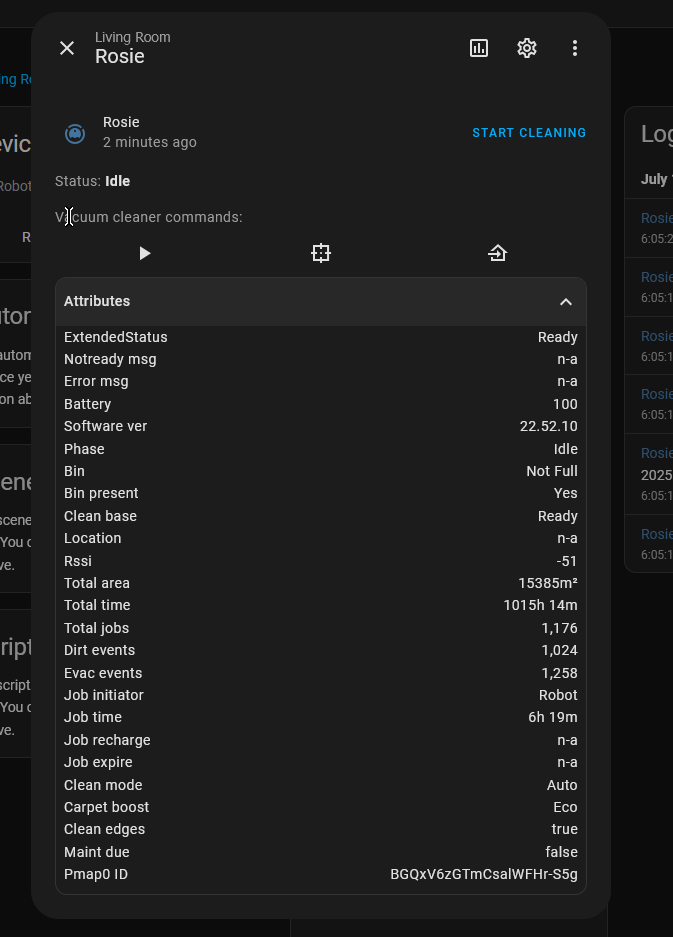

Backwards Compatibility

Minus the actions (currently!), the integration adds all the attributes that you would expect from jeremywillans implementation, even adding an extendedState attribute that gives you "Ready", "Training", "Spot", etc. since HA doesnt do that natively for some odd reason.
